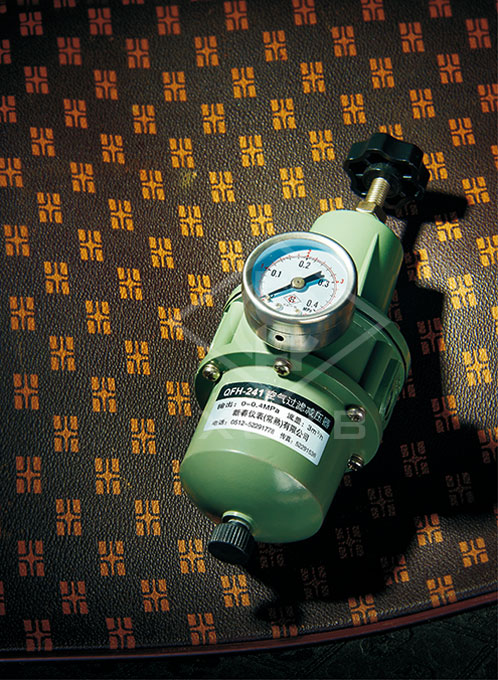

QFH series air filtration pressure reducer

·When the input pressure and flow rate fluctuation, can keep a stable output pressure;
·Light weight, small size, easy installation and maintenance;
·Can filter 5 micron particles;
·If the output pressure is higher than the set, then the atmosphere to maintain the stable of output pressure.
Contact purchase

Share

First, Product Overview

QFH air filtration pressure reducer of 0.3-1 MPa from air compressor, air pressure,  passing by after filtration, adjustable from 0-0.16; 0-0.25; 0-0.4; 0-0.6 MPa range  any lose the pressure value, maintain the stability of the auxiliary components.

Second, Technical Data

ModelQFH111QFH211QFH212QFH213QFH221QFH222QFH223QFH241QFH261
Air pressure
（MPa）		0.3~0.70.4~0.70.5~1.00.7~1.0
Maximum
output
pressure
（MPa）		0.160.250.40.6
Maximum
output flow
（M/H）		3124031240

3

To take over
the internal
thread		1/4(M10×1)G1/2G3/41/4(M10×1)G1/2G3/41/4(M10×1)

Ordering information:
When ordering please indicate the product name, model, output pressure and terminal interface;
When ordering if you have special request, please indicate.
